X7.5 MULTI-ROLE RIB

Get best Performance from X7.5 Multi-Role RIB

Crew + Personnel

7.50

Length ( m )

400

Fuel Capacity

Spesification

General

Basic Functions

: Patrol, Interception, Amphibious forces insertion

Hull Material

: Infused Vinylester Composite

Collar Type

: Hypalon 1500 GSM

Dimensions

Length Over All

: 7.50 m

Beam Over All

: 3.00 m

Beam of Hull

: 2.30 m

Draught

: 0.66 m

Displacement

: 2,200 kg

Fuel Capacity

: 400 L

Tube Diameter

: 530 mm

Tube Compartment

: 5 compartment w/ pressure relief valve

Propulsion

Main Engines

: 150 - 300 HP Outboard Engine

Seating

Crew + Personnel

: 8 Persons

Life Saving Equipment

Fire Extinguishing

: Portable Powder FE

Rescue Equipment

: Life jackets, Life Buoys

Nautical Equipment

Radar, GPS, AIS

Communications

VHF Radio

Description

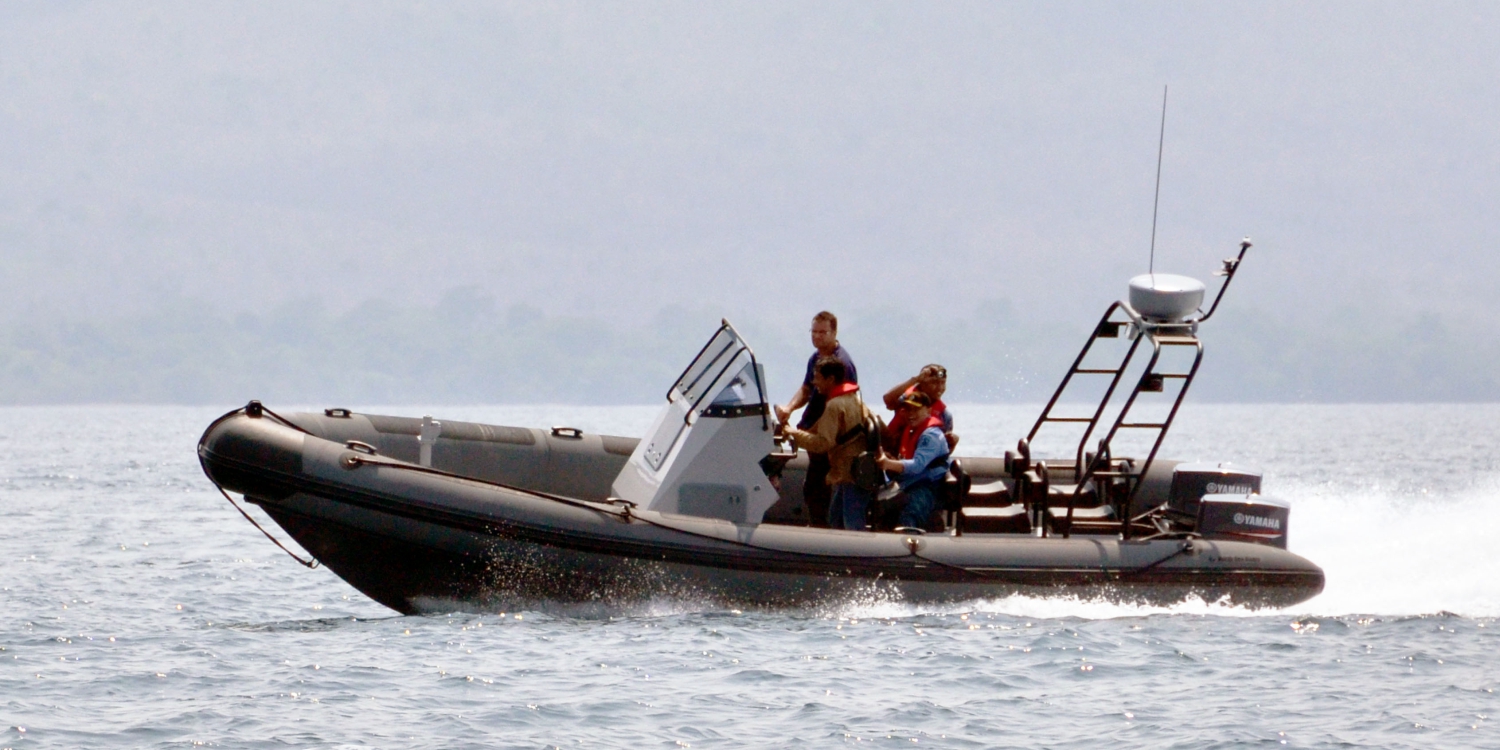

The 7.5 metre Multi-Role RIB is based on the same seaworthy and internationally well proven X8.5 RIB design. It is also suitable for ship or shore based operations, and can perform a wide range of roles including, interdiction, patrol, personnel transfer, diving, SAR, and work-boat duties. Fitted with removable seats, it can carry light cargo, or conduct humanitarian and disaster relief work.

The control console can be mounted forward or aft, and houses the steering, navigation and communications systems, and is ergonomically designed to allow the crew to operate the boat with maximum efficiency. The targa frame can be stand-alone or incorporated around the console, is used to mount a range of equipment including: Self Righting Systems, radar, antennas, navigation lights, FLIR cameras, etc.

The X7.5 RIB can be fitted with single or twin outboard motors, and is build to CE Standards. Production is under the ISO 9001:2008 Quality Management System Certified by Lloyd Register Quality Assurance
